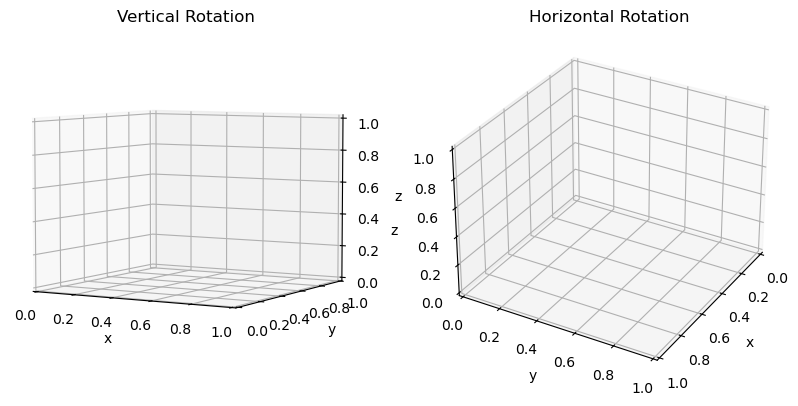

Plotting a line with plot() or plot3D()#

You can plot a line on a 3D axis using plot() or plot3D(), which has the call signature:

plot(xs, ys, zs)

where xs, ys and zs are 1D array-like objects that contain the $x$, $y$ and $z$ coordinates of each point/vertex making up the line. Note that you can use the same keyword arguments as the 2D plot() function.

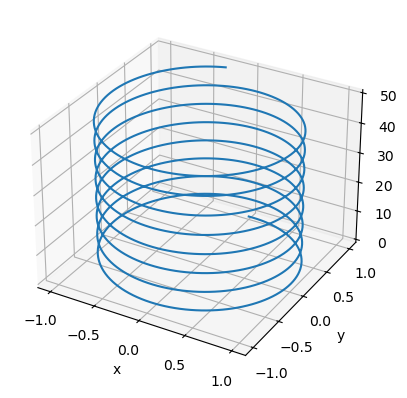

Worked Example - Plotting a 3D Spiral Line

For example, let’s plot a spiral, defined by:

$$\begin{array}{rl}x(s)& =\sin (s)\\ y(s)& =\cos (s)\\ z(s)& =s\end{array}$$

from mpl_toolkits import mplot3d

import numpy as np
import matplotlib.pyplot as plt


fig, ax = plt.subplots(subplot_kw=dict(projection='3d'))

s = np.linspace(0, 50, 1000)

ax.plot(np.sin(s), np.cos(s), s)

ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('z')

plt.show()

Plotting surfaces with plot_surface()#

The plot_surface() function creates a surface plot using a grid of points (or vertices) arranged to form quadrelaterals.

plot_surface(X, Y, Z)

The arguments X, Y and Z are 2D arrays containing the $x$, $y$ and $z$ coordinates of the points on the grid respectively. Pairs of adjacent points make the edges of the quadrelaterals.

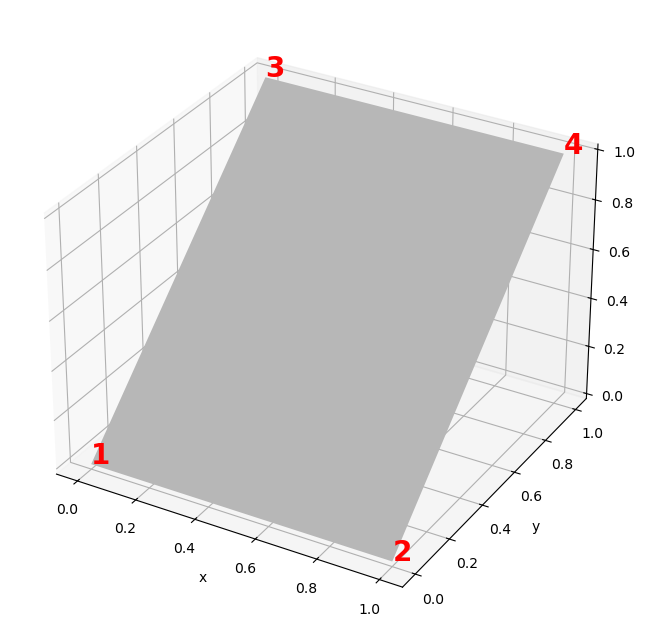

Worked Example - Plotting a Rectangle

For this first example, let’s plot a square with one side elevated. We will give it points with the $(x,y,z)$ coordinates:

1. $(0,0,0)$

2. $(1,0,0)$

3. $(0,1,1)$

4. $(1,1,1)$

These coordinates will be stored in separate arrays for $x$, $y$ and $z$ in the following order:

$$\left[\begin{array}{cc}1& 2\\ 3& 4\end{array}\right]$$

from mpl_toolkits import mplot3d

import numpy as np
import matplotlib.pyplot as plt

fig, ax = plt.subplots(subplot_kw=dict(projection='3d'), figsize=(10,8))

X = np.array([
    [0, 1],
    [0, 1]
])

Y = np.array([
    [0, 0],
    [1, 1]
])

Z = np.array([
    [0, 0],
    [1, 1]
])

ax.plot_surface(X, Y, Z)

ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('z')

plt.show()

Note that the code used to select the color of the surface and create the numerical annotations is not included above.

Now, we will often create surfaces where $Z(X,Y)$ is some function of $X$ and $Y$, where $X$ and $Y$ can be treated as independent variables. In these cases we can generate a grid of $x$ and $y$ coordinates, and use these to calculate the corresponding $z$ values.

To create this grid we will use the numpy.meshgrid() function. For our interests, the call signature of meshgrid() is:

meshgrid(*xi)

where xi is sequence of arrays. Here we are only interested in passing 2 arrays into meshgrid() (one for a sequence of $x$ values and another for a sequence of $y$ values) to produce a 2D grid.

Consider the arrays x and y where:

if we were to put these into meshgrid():

X, Y = np.meshgrid(x, y)

then the resulting 2D arrays would be of the form:

and

both with $m$ rows and $n$ columns.

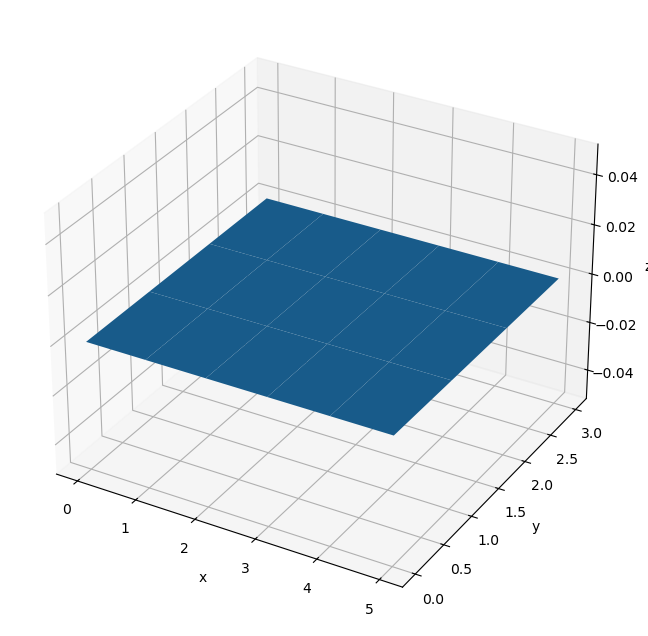

Let’s consider an example of a grid like this generated from the arrays:

used to generate a flat surface with $z=0$.

from mpl_toolkits import mplot3d

import numpy as np
import matplotlib.pyplot as plt


fig, ax = plt.subplots(subplot_kw=dict(projection='3d'), figsize=(10,8))

x = np.arange(0, 6)
y = np.arange(0, 4)

X, Y = np.meshgrid(x, y)
Z = np.zeros(X.shape)

ax.plot_surface(X, Y, Z)

ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('z')

plt.show()

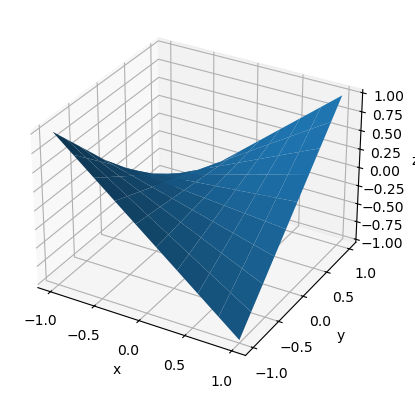

Worked Example - Plotting a Surface Using a Rectangular Grid

Let’s consider a simple surface:

$$z=xy$$

from mpl_toolkits import mplot3d

import numpy as np
import matplotlib.pyplot as plt


fig, ax = plt.subplots(subplot_kw=dict(projection='3d'))

x = np.linspace(-1, 1, 10)
y = np.linspace(-1, 1, 10)

X, Y = np.meshgrid(x, y)

Z = X * Y

ax.plot_surface(X, Y, Z)

ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('z')

plt.show()

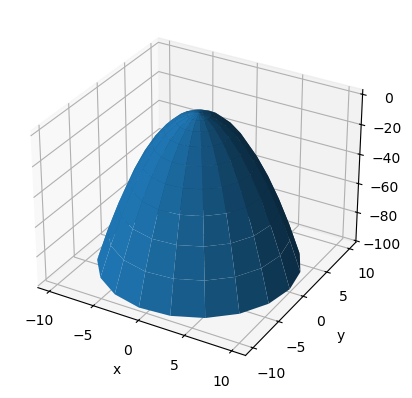

Worked Example - Plotting a Surface Using a Radial Grid

You may not always want to use a rectangular grid. For example, if we have a radially symmetric surface (or just a surface defined using polar coordinates):

$$z=1-(x^2+y^2)$$

then we may want to use a radial grid, by creating a rectangular grid of $r$ and $\theta$ coordinates, where:

$$\begin{array}{rl}x& =r\cos (\theta )\\ y& =r\sin (\theta )\end{array}$$

and then calculating an $x$, $y$ grid from this. Note that $x$, $y$ and $z$ can be considered as parameterized by $r$ and $theta$.

from mpl_toolkits import mplot3d

import numpy as np
import matplotlib.pyplot as plt


fig, ax = plt.subplots(subplot_kw=dict(projection='3d'))

r = np.linspace(0, 10, 10)
theta = np.linspace(0, 2 * np.pi, 20)

R, THETA = np.meshgrid(r, theta)

X = R * np.cos(THETA)
Y = R * np.sin(THETA)
Z = 1 - R * R # X**2 + Y**2 == R**2

ax.plot_surface(X, Y, Z)

ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('z')

plt.show()

There’s much more that you can do with these surface plots, such as coloring them in using a colormap.

Plotting wireframes with plot_wireframe()#

The plot_wireframe() function is similar to the plot_surface() function, except it produces a plot of the edges of the quadrilaterals only, with the faces unfilled.

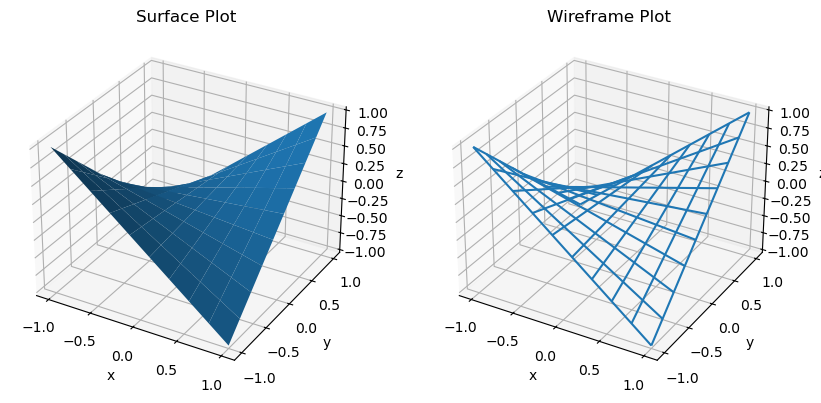

Worked Example - Plotting a Simple Wireframe

Let’s consider the same surface as before:

$$z=xy$$

from mpl_toolkits import mplot3d

import numpy as np
import matplotlib.pyplot as plt


fig, ax = plt.subplots(1, 2, subplot_kw=dict(projection='3d'), figsize=(10,8))

x = np.linspace(-1, 1, 10)
y = np.linspace(-1, 1, 10)

X, Y = np.meshgrid(x, y)

Z = X * Y


#Surface Plot
ax[0].plot_surface(X, Y, Z)

ax[0].set_title('Surface Plot')

ax[0].set_xlabel('x')
ax[0].set_ylabel('y')
ax[0].set_zlabel('z')


#Wireframe plot
ax[1].plot_wireframe(X, Y, Z)

ax[1].set_title('Wireframe Plot')

ax[1].set_xlabel('x')
ax[1].set_ylabel('y')
ax[1].set_zlabel('z')


plt.show()
